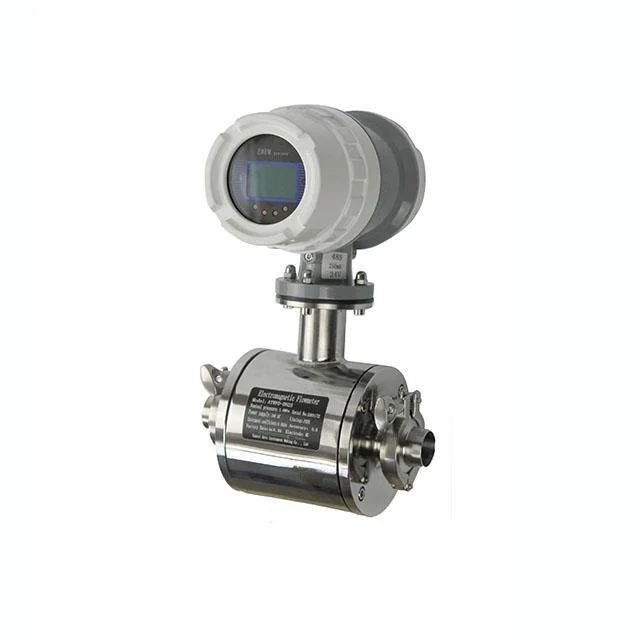

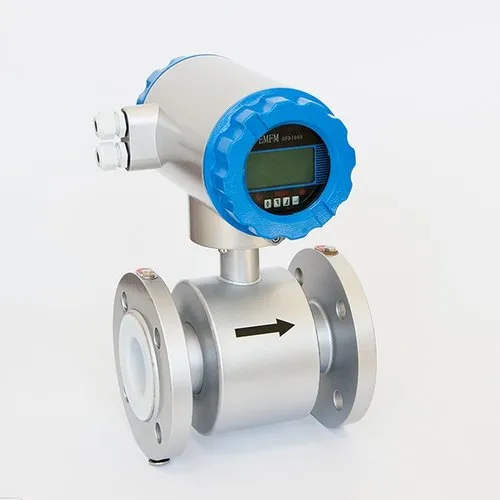

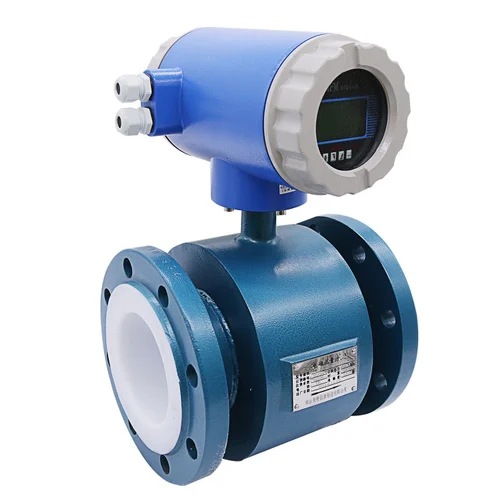

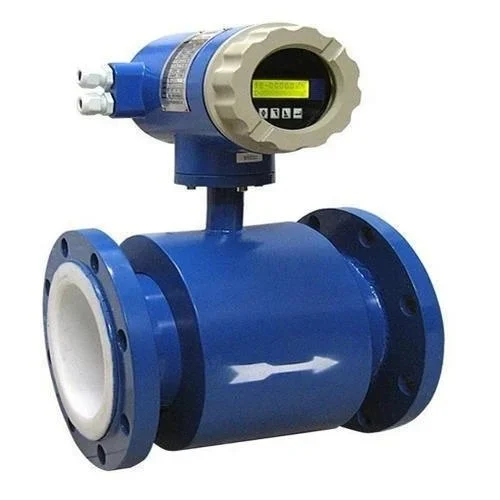

Electromagnetic Flow Meter

The Electromagnetic Flow Meter is a precision inline flow measurement instrument based on Faraday's law of electromagnetic induction. It accurately measures the volumetric flow rate of conductive liquids including wastewater, chemicals, acids, alkalis, slurries and food-grade liquids without any moving parts, ensuring zero pressure drop and minimal maintenance over the product lifetime.

Key Features:
- Accuracy of ±0.5% FS or ±0.2% FS with repeatability ±0.2% or better
- PTFE liner for chemical resistance and wide temperature compatibility
- Hastelloy C electrodes for corrosive media handling
- 4-20mA analogue output with HART digital communication
- Integral LCD display for local flow reading
- Available in stainless steel and carbon steel body materials
- ANSI, DIN2501, and GB9115 flanged connection standards
- Measuring tube, cone and flange materials: 304SS, 316L SS, carbon steel, PTFE/PP
- Fluid velocity range: 0.5 to 15 m/s
- Operating pressure range: 1 MPa to 40 MPa
- Temperature range: -100 to +500°C
- Wide turndown ratio 1:10 (higher available on request)
- Available in precision pipeline type, square tube type and ordinary clamp-hold type
- Power supply: 24V DC
- No moving parts — no pressure drop, long service life
- Delivery time: 2-3 weeks

Applications:
- Wastewater and sewage flow measurement
- Water treatment and distribution
- Chemical and petrochemical processing
- Food and beverage production
- Pharmaceutical process monitoring
- Slurry and pulp flow measurement
- Mining and mineral processing
- Power plant cooling water monitoring
