Wall Mounting Ultrasonic Flow meter

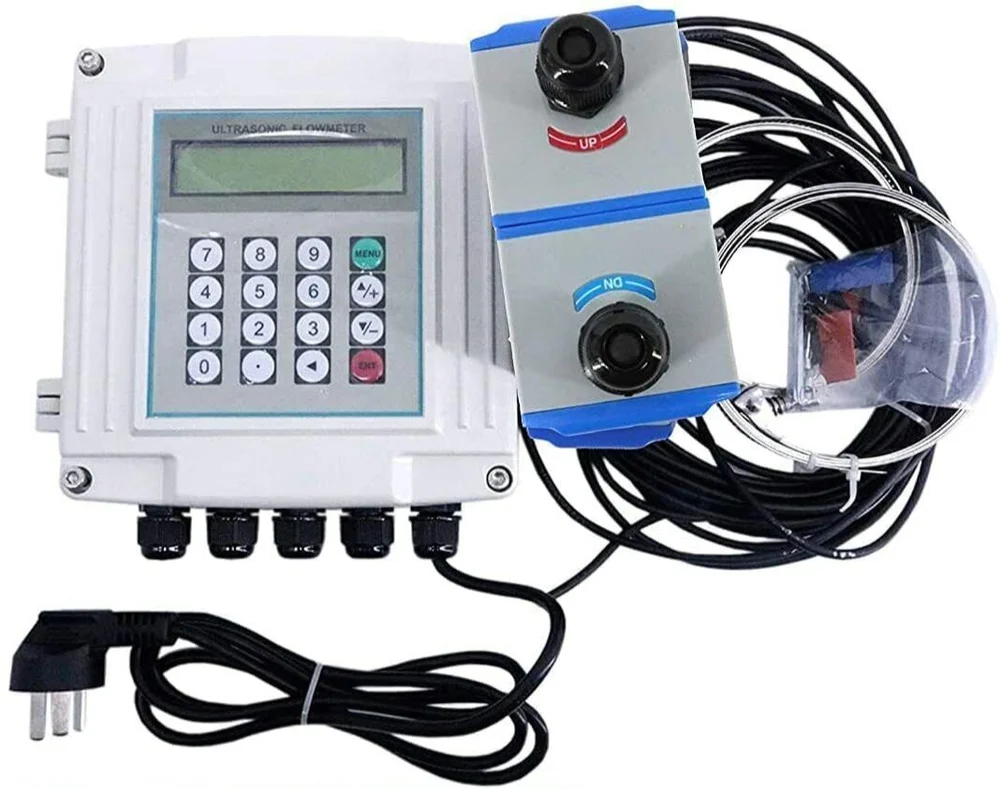

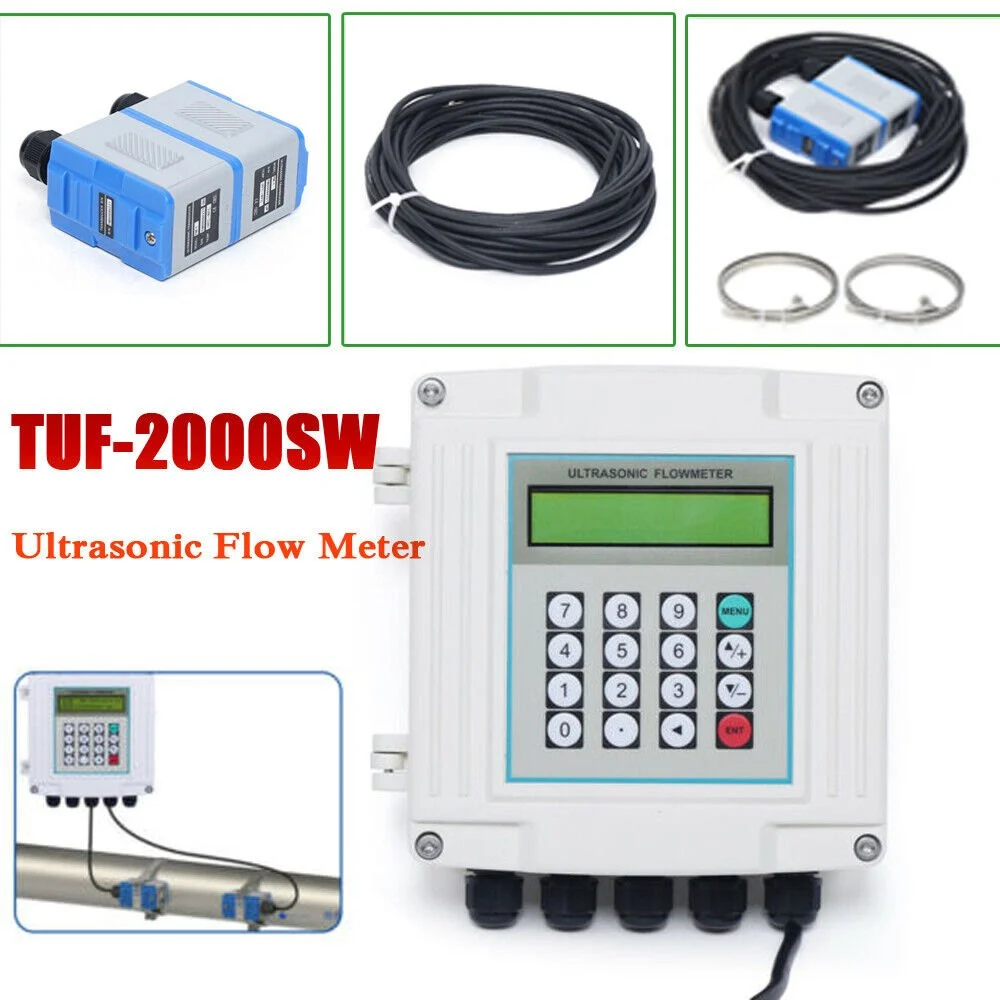

The TUF-2000S is a fixed wall mounting transit time ultrasonic flow meter designed for non-invasive, clamp-on measurement of liquid flow across a wide range of industrial applications. Supporting pipe sizes from DN15 to DN6000mm and compatible with virtually all single-phase liquids, it eliminates the need for pipe cutting, process shutdown, or fluid contact during installation. The converter and transducer are separately mounted, making it suitable for both indoor and outdoor field installation.

Key Features:
- Transit time ultrasonic measurement principle for high accuracy
- Accuracy ±1% with 2×20 character LCD backlight display (Chinese, English, Italian)
- 1 way 4-20mA output (0-1K resistance, accuracy 0.1%)
- 1 way OCT pulse output (pulse width 6-1000ms, default 200ms)
- 1 way relay output
- 3 way 4-20mA input (accuracy 0.1%) for temperature, pressure, and level signal acquisition
- Connects Pt100 temperature transducer for heat/energy measurement
- Isolated RS485 serial interface with Modbus protocol support
- Software upgradeable via PC
- Wide pipe diameter range: DN15 to DN6000mm
- Compatible with steel, stainless steel, cast iron, copper, cement, PVC, aluminium, and glass steel pipes with liner allowed
- Flow velocity range: 0 to ±7m/s (bi-directional)
- Medium temperature range: -30 to 160°C
- Turbidity up to 10,000 ppm with low bubble content
- Power supply: DC 8-36V or AC 85-264V (optional)
- Low power consumption of 1.5W
- Transducer waterproof rated up to 2m depth

Applications:
- Water and wastewater treatment
- Cooling and chilled water systems
- Chemical and petrochemical processing
- Food and beverage plants
- Oil pipeline flow monitoring
- Heat and energy metering
- Pharmaceutical processing
- Marine and sea water applications
